Description

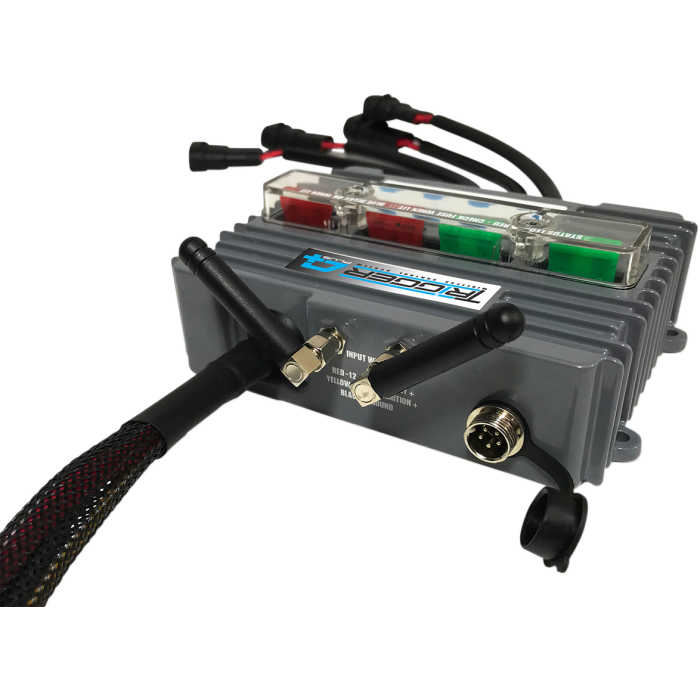

Trigger 4 Plus Controller
– Control box
– 4 channels, 2 x 30 amp circuits, 2 x 10 amp circuits, All Solid State, 12-24 volt
– Battery powered RF Remote with universal mount system
– Bluetooth control from phone/tablet app
– Manual buttons for on/off on top of case
– 12 to 24 volt out with waterproof connectors
– Fuse’s built in, waterproof cover (30 amp – 1 and 2, 10 amp – 3 and 4)
– LED’s to indicate relay on and if fuse is blown, blue for circuit on, red for blown fuse
– Waterproof case design, withstands temps to 250 deg. F and -20 deg. F below freezing
– RF Remote
– 2.4 ghz frequency hopping RF connection to control box
– Replaceable battery power
– Back lit with the press of a button
– App Control
– Apps for both Android and iOS with simple interface for turning on and off the 4 channels
– Kit Includes
– Four 8′ wire harnesses with the mating connector to the control box on one end and blank wires on the other; Two 12 gauge, two 14 gauge
