Description

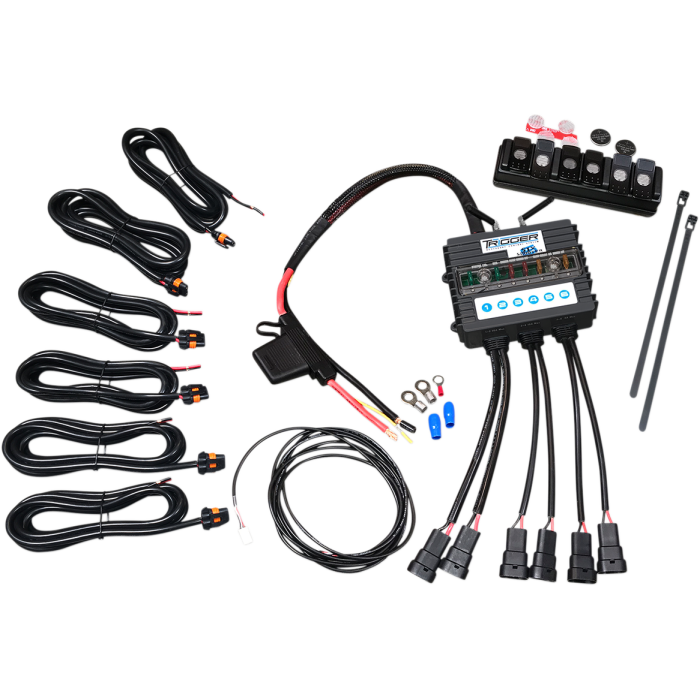

Trigger Six-Shooter Controller
– Control box
– 6 channels, 2 x 30 amp circuits, 2 x 10 amp circuits, 2 x 5 amp circuits, All Solid State, 12-24 volt
– RF Remote switch pad usable inside or outside the vehicle
– Bluetooth control from phone/tablet app
– Manual buttons for on/off on top of case
– DIN connector built in for manual control with conventional toggle switches (harness sold separately)
– Low voltage cutout to shut down Trigger if battery voltage gets low
– 100 amp fuse installed on positive input wire for protection
– 12 to 24 volt out with waterproof connectors
– Fuse’s built in, waterproof cover (30 amp – 1 and 2, 10 amp – 3 and 4, 5 amp – 5 and 6)
– LED’s to indicate relay on and if fuse is blown, blue for circuit on, red for blown fuse
– Waterproof case design, withstands temps to 250 deg. F and -20 deg. F below freezing
– 12 to 24 volt input, 3 wires, ground, switched positive, battery positive
– RF Remote
– 2.4 ghz frequency hopping RF connection to control box
– Replaceable battery power and/or 12 volt hardwired option for backlit switches
– Back lit with press of button, delayed off for the back light. If hardwired, provides a color changing option adjustable from App
– Back lights stay lit when vehicle lights are on
– Custom switch labels included
– Weatherproof design
– App Control
– Apps for both Android and iOS with simple interface for turning on and off the 6 channels
– Allows customized names for each channel
– Battery voltage shows in App screen
